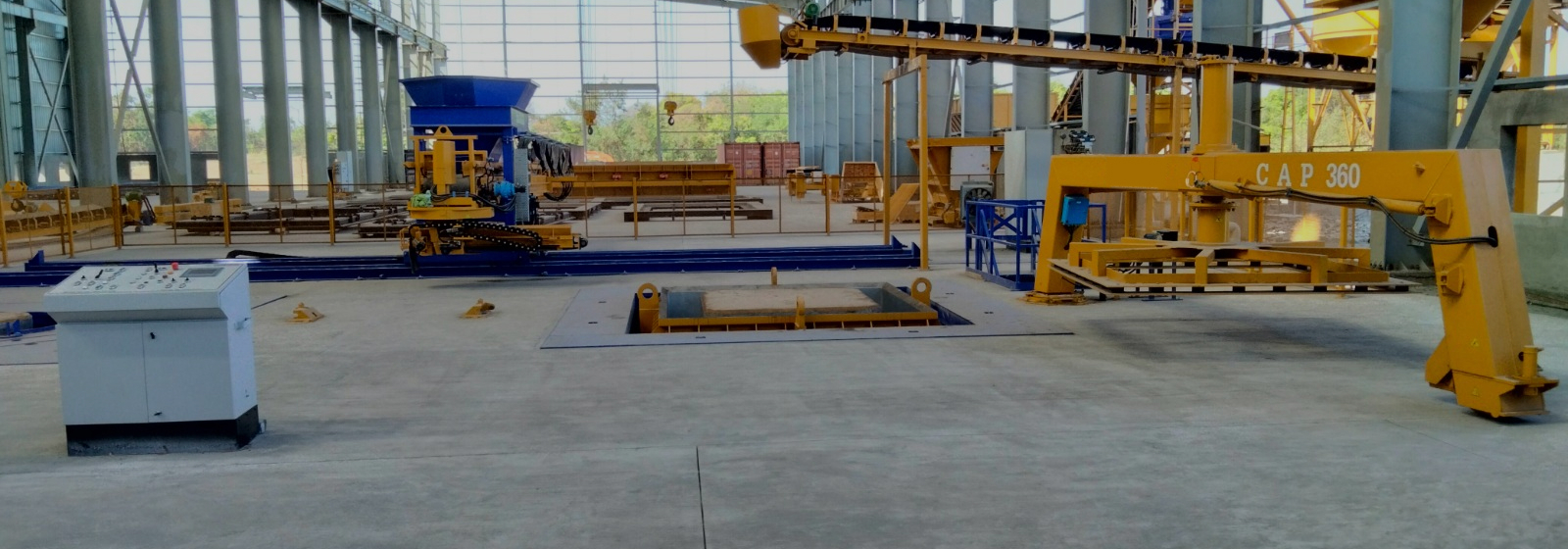

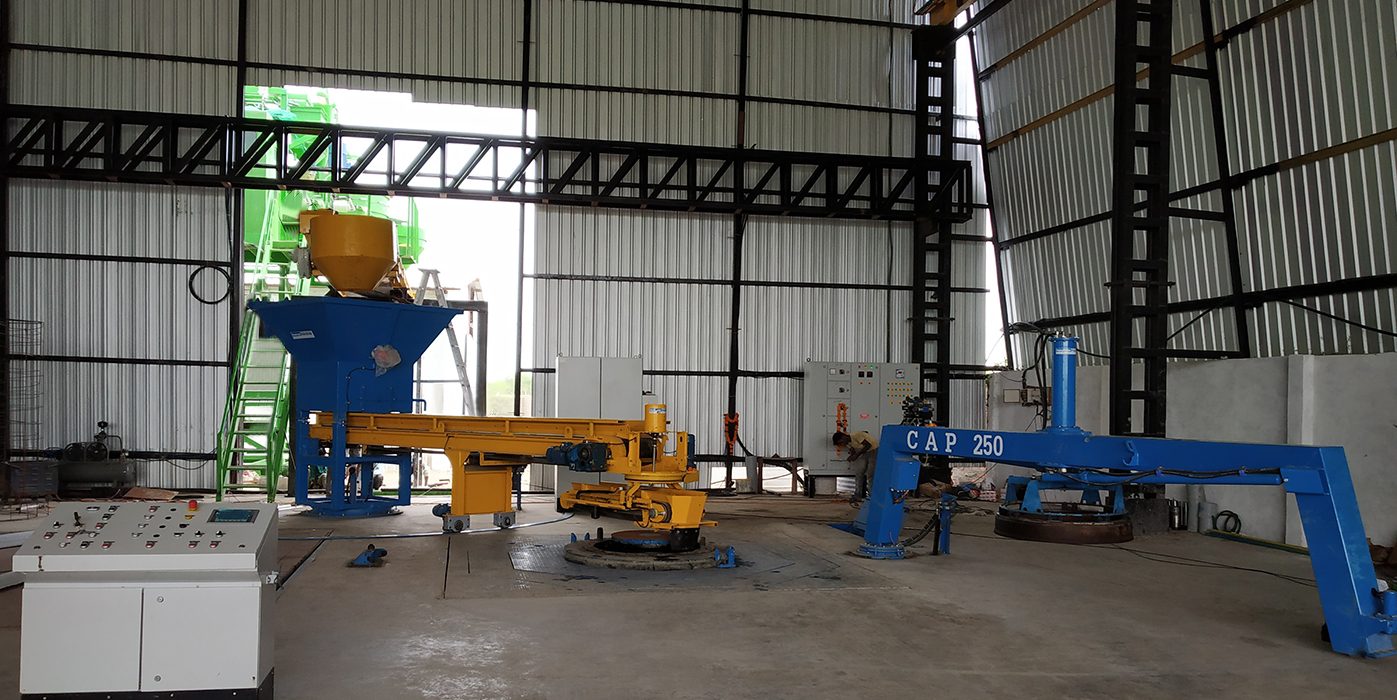

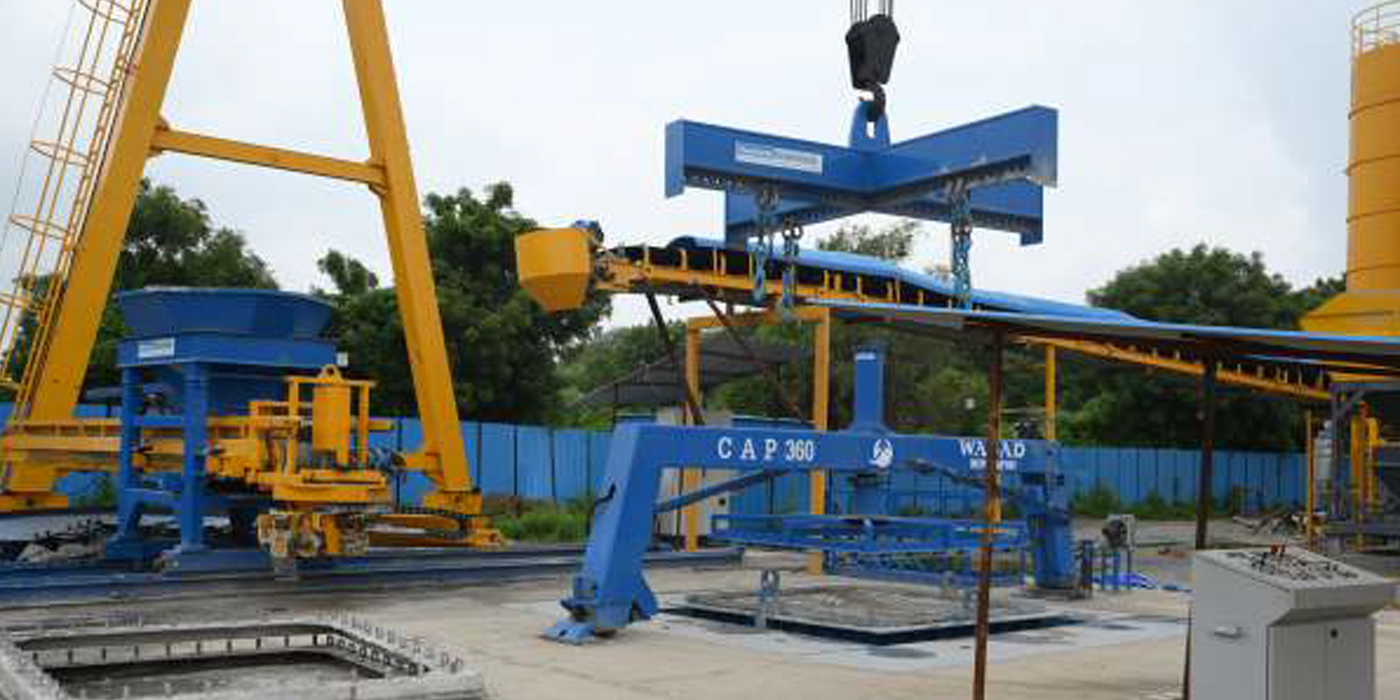

Concrete Pipe Making Machines : CAP 250, CAP 360
BACK TO PRODUCT
Apollo HawkeyePedershaab, a leading manufacturer and supplier of CAP series concrete pipe machines in India, provides advanced dry cast machines designed for producing a wide range of high-quality concrete products:
- Reinforced and non-reinforced pipes
- Circular and non-circular pipes with a “bell” or in-wall joint
- Lined pipe with PE, HDPE, PVC or GRP
- Jacking pipes
- Box culverts, U-Drains
- Manhole risers
- Cones
Vertical Vibrated
Casting Technology
Single and Twin Station Capability
A second production station can be installed initially or added in the future.Second station permits two different product sizes to be produced at-a-time and virtually doubles machine output.
CONCRETE PIPE MACHINES STANDARD FEATURES (CAP 250/360)
- Electrically driven, synchronized VIHY core vibration system with oil-lubricated bearings.
- Frequency controlled vibrator speeds.
- Concrete feeder with belt distributor for direct filling of all pipe diameters.
- Hydraulically operated pressing/rocking device for forming spigots, with mechanical pipe length control.
- Safety system for compliance with EU standard requirements.
- Laser fine filling control with concrete distribution belt.
- Hydraulic power pack to drive the concrete feeder, the pressing/rocking device and any given hydraulic features on the machine.
- Mechanical elevation system to accommodate different product lengths.
- Stationary control panel with PLC control system & digital display
- Stationary Panel with PLC control system and digital display.
- Pit cover plates incl. stairway to the pit for easy access to the machine and the mold.
PRODUCTION CAPABILITY FOR REINFORCED PIPE, MANHOLE RISER, BOX CULVERTS
| Diameter MM | Reinforced Pipe | Manhole Riser | Manhole Riser | Box Culverts |
|---|---|---|---|---|
| Length=2500mm Pipe/hour |
Height=1200mm Units/hour |
Height=600mm Units/hour |
Length=2000mm Units/hour |
|
| 300 | 7 | - | - | 4 |
| 600 | 7 | 11 | 16 | 4 |
| 900 | 7 | 9 | 16 | 3.5 |
| 1200 | 5 | 8 | 14 | 3 |
| 1500 | 4.5 | 7 | 12 | 2.5 |
| 1800 | 4 | 6.5 | 10 | 2.2 |
| 2000 | 3.5 | 5.5 | 8 | 1.9 |
| 2500 | 2.5 | 4 | 5 | 1.5 |
| 3000 | 1.4 | 2 | 3 | 1.2 |
| 3600 | 0.9 | 1.5 | 2 | - |
DIMENSIONS(MM) FOR CIRCULAR PIPE, MANHOLE CONES
| Model | Circular Pipes | Box Culverts / Manhole Cones |
Max Product Length |
|---|---|---|---|
| CAP 250 | 300-2500 | 300-2000 | 2500 |
| CAP 3600 | 600-3600 | 600-3000 | 2500 |
VERTICAL CASTING CONCRETE PIPE MACHINERY OPTIONAL FEATURES ( CAP 250/360 )
The CAP 250/360 can be supplied with a number of add-on features to make operations and handling even easier and improve production in general.These include:
- Top ring (header) system
- Lifting hole equipment
- Pneumatic equipment for casting of lined pipe
- Double casting stations
- 3 Meter length
- Quick relocated platform / pit cover
- Pneumatic pallet locking
- Direct cast-in pin holes for step holes or inserts
